远心和微距镜头选择
如何订购非标镜头
In addition to the standard telecentric and macro lenses that you can find in the catalog/website, Opto Engineering® offers a wide selection of non-standard lenses with customized options to meet special needs.
Ordering information and part number explanation

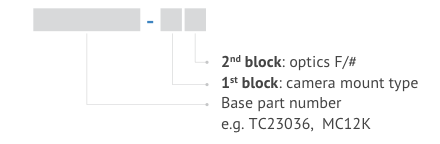

Ordering non-standard lenses is easy:
- The first block after the dash indicates the camera mount type interface
- The second block after the dash defines the optics F/#
Example
If you need a TC2MHR064 lens with M42X1 FD12 mount type and F/# = f/22, ordering code is the following:
TC2MHR064 – J7
Bi-telecentric lens for 1″ detectors, magnification 0.200 x, M42X1 FD12 mount, f/22
Refer to this table for explanation of the suffixes.
| Digit 1: Block 1: Mount type * | Digit 2: Block 2: Optics F/# ** | ||
|---|---|---|---|
| Suffix | Description *** | Suffix | Description *** |
| A | M95x1 FD 9.4 | 1 | F/14 |
| B | CS-mount | 2 | F/11 |
| C | C- mount | 3 | F/6 |
| D | M42x1 FD6.56 | 4 | F/8 |
| E | M42x1 FD16.00 | 5 | F/12 |
| F | F-Mount | 6 | F/16 |
| G | M72x0.75 FD12 | 7 | F/22 |
| H | M72x0.75 FD19.96 | 8 | F/30 |
| I | M58x0.75 FD11.48 | 9 | F/5.8 |
| J | M42x1 FD12 | A | F/5 |
| K | M58x0.75 FD12.96 | B | F/18 |
| M | M42x1 FD19.54 | C | F/10 |
| N | M42x1 FD10.56 | D | F/4 |
| O | M72x0.75 FD12.35 | ||
| P | M72x0.75 FD19.56 | ||
| Q | M58x0.75 FD6.56 | ||
| R | M72x0.75 FD6.56 | ||
| S | M42x1 FD11.48 | ||
| T | M42x1 FD8.89 | ||
| U | M42x0.75 FD16.00 | ||
| V | M58x0.75 FD20.00 | ||
| Y | M52x0.75 FD46.5 | ||
| W | M42x1 FD11.00 | ||
| Z | M42x1 FD10.00 | ||
| AZ | M42x1 FD 11.81 | ||
| BZ | M72x0.75 FD 8 | ||
| CZ | TFL Mount M35x075 FD17.526 | ||
| DZ | M72x075 FD31.8 | ||
| EZ | M40x0.75 FD17.526 | ||
| FZ | M42x1 FD45.56 | ||
| GZ | M48x0.75 FD6.56 | ||
| 0 | standard | ||
| 1 | M58x0.75 FD46.5 | ||
| 2 | M95x1 FD 12 | ||
| 3 | M42x1 FD 8 | ||
| 4 | Basler Sprint series | ||
| 5 | M42x1 FD32 | ||
| 6 | M42x0.75 FD11.48 | ||
| 7 | M58x0.75 FD12 | ||
| 8 | M90x1 FD12 | ||
| 9 | M72x0.75 FD=10.10 | ||
Notes
* Place suffix designator “0” in the first block after the dash if you require the default mount type. See product matrix of the standard series to check which option is supplied by default.
e.g. If you need a TC23007 lens with C-mount type and f-number = f/16, ordering code is the following:
TC23007 – 06
Bi-telecentric lens for 2/3″ detectors, magnification 1.333 x, C-mount, f/16
** Omit the second block after the dash if you require the default optics F/#. See product matrix of the standard series to check which option is supplied by default.
e.g. If you need a TC16M064 lens with M42x1 FD6,56 mount type and f-number = f/16, ordering code is the following:
TC16M064 - D
Bi-telecentric lens for 35 mm detectors, magnification 0.561 x, M42X1 FD6,56 mount
*** FD stands for “Flange Distance” (in mm)
